Outboard Gear Shift Extender.
We've all been there, sliding bow first into a marina slip with an expensive, shiny hull beside you and nobody on the dock to catch your boat.  What makes this task difficult on an SJ23 is the time consuming reach down to the side of the outboard for the gear shift lever and tweaking the throttle on the upturned tiller, hoping you twist it in the correct direction.  This is exactly when you should be looking forward while steering, for which you should be standing to see over the cabin.  There are two problems with this approach: many people are not capable of maintaining a straight course when turned around and for others it is a mobility issue to turn around.  Its a contortion they simply can't do.
If you are going stern first into the slip this job is relatively easy with the good visibility that direction affords but the thought of crunching the rudder into the dock keeps me from doing this.

Docking into a slip can be even more daunting if the wind pushes your boat into the slip, leaving little time to stop the forward motion.  The last step is to jump on the dock finger with mooring lines in hand.  You have to perform this manoeuvre in one quick, smooth motion that you can't screw up.

  • If you ram the dock it is expensive on your hull.
  • If you damage the dock the club won't invite you back.
  • If you ram an adjacent hull it is twice as expensive.
  • Any of the above is bloody embarrassing.

DOCKING - When docking solo I slide into the slip ever so slowly, shifting the outboard in and out of gear with the throttle at idle, going in a slight angle toward the finger.  The idea is to gently nudge the bow against the spine of the dock to stop forward motion, then rotate the outboard a bit to push the stern against the finger.  This side thrust pins the boat against the finger, allowing me to secure the stern line so I can step on the dock to snub the spring lines.  They are the most effective lines to keep the boat still.  Panache seldom moves during this last part of the manoeuvre but sometimes it is easier said than done!   I have been known to stay out till the wind subsides or pull into a vacant slip on the other side of the dock when I have a following wind in my slip.

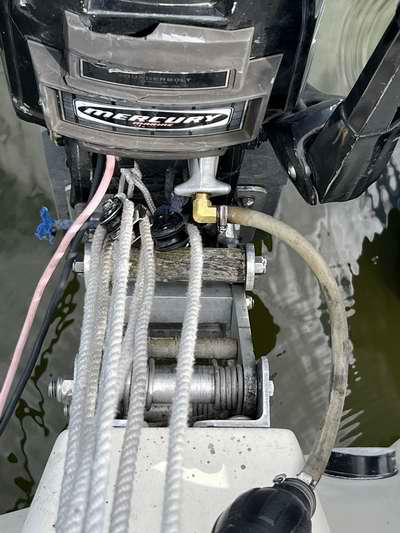

Fuel Line Elbow (2025) - With the outboard down the fuel line would jam against the outboard bracket, making it difficult to rotate the engine.  I'm amazed the fuel line never broke.  So I installed a brass elbow fitting and now the fuel line rides stress free and I can easily rotate the outboard for docking.

SHIFTER - This docking process is simpler if you can easily adjust the shifter from the cockpit at low throttle.  Shown here is one person's DIY solution installed on a SJ23 MKII.  He attached a 3/4" PVC tube to a screw bolted through the top of the gear shift lever, thereby extending the shift control up to the cockpit.  The design has enough play to permit raising/lowering, tipping and about +100 of rotation of the outboard due to the loose joint.  So simple and yet so effective at solving the most frustrating part of docking.  This really is a civilized way to shift an outboard and offers the best bang for your buck.

THROTTLE - Yamaha and some other manufacturers make a throttle lever extension that slips over the existing tiller throttle, raising the throttle to transom height.  This makes it easier and quicker to adjust the throttle.  This control isn't for everyone and Panache's outboard bracket has too much up/down movement to make this extension useful.

You still have to reach down there to start and stop the outboard though.  Oh well.  Hmmm, maybe I could add start & stop switches to the stick and include a safety slider to prevent accidental operation?  Nah, not worth it.

Notice the multi-purchase easy outboard lift copied directly from "another famous SJ23."  Such cheekiness!  Also a full pushpit and split backstay.

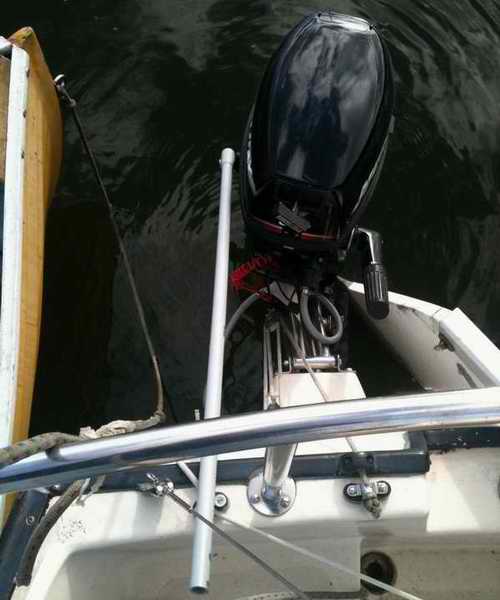

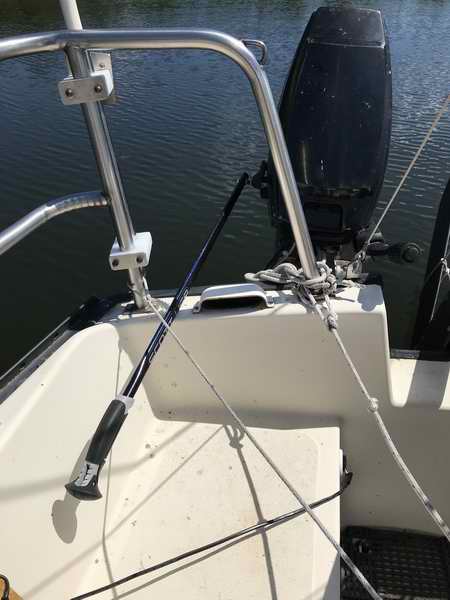

PANACHE INSTALL (2010) - Having previously installed and used a similar shift extender made from an aluminum ski pole, I have since shortened it so it protrudes less into the cockpit than shown below.  I was unknowingly pushing the pole back with my hip, shifting the outboard to neutral, just when I needed some push for the final approach into the slip.  This situation was confusing when I found myself floating towards my neighbouring boat in the slip.  I shortened the pole so with the outboard is shifted to reverse, the end is 4" inboard of the transom.  Neutral and forward will be further inboard.  The bonus is that I can flip the pole up and behind the pushpit to rotate the outboard for servicing from the cockpit.

Fig 1 - Panache's original configuration below was never a problem when swinging on a mooring.
When I moved her to a sail club dock with a narrow shallow water slip, things got a tad "difficult".






Not being able to rotate the engine when docking with a contrary wind was a problem.  Also when visitors sat in the cockpit, the stick was in the way.  The pneumatic rod end fitting shown below right is the solution to both problems.  These fittings are difficult to find locally, being used extensively in aviation.  Fortunately I found a box of them at a farm estate sale.

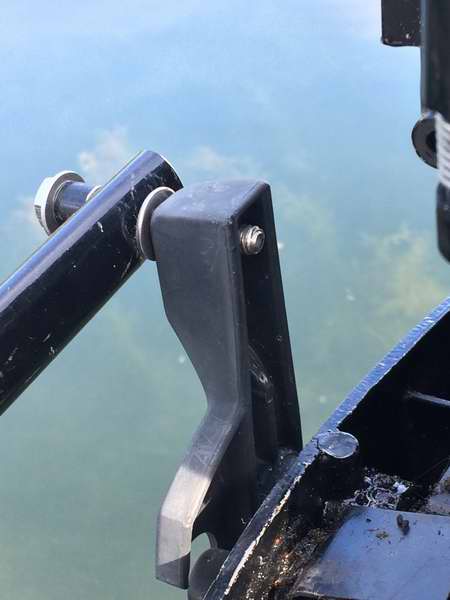

Fig 2 - This was the sailing position before the extender was replaced.  It was seldom in the way when sailing solo, but couldn't be moved sideways or the outboard rotated without breaking the outboard shift lever.



PS: Those lines angled across the cockpit secure the tiller centered and the rudder blade out of the water while Panache is in her slip.  For cockpit shenanigans the lines are removed and the tiller is lifted.

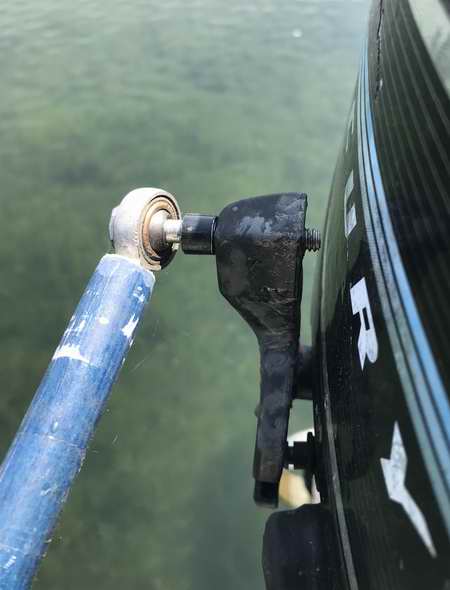

Fig 3 - The rod end fitting allows movement for both.  Here it is fastened with epoxy.

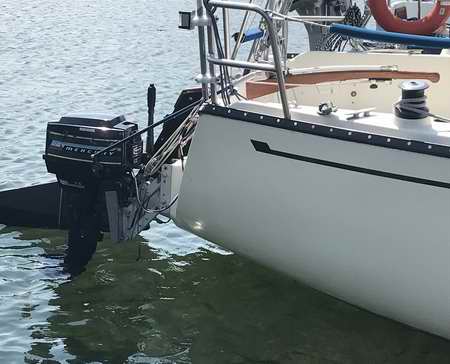

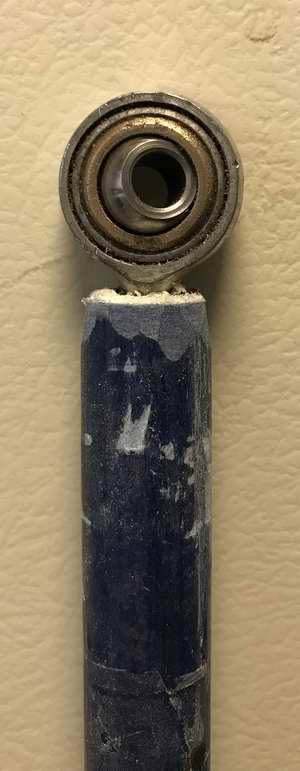

Fig 4 - Pole with rod end fitting installed.

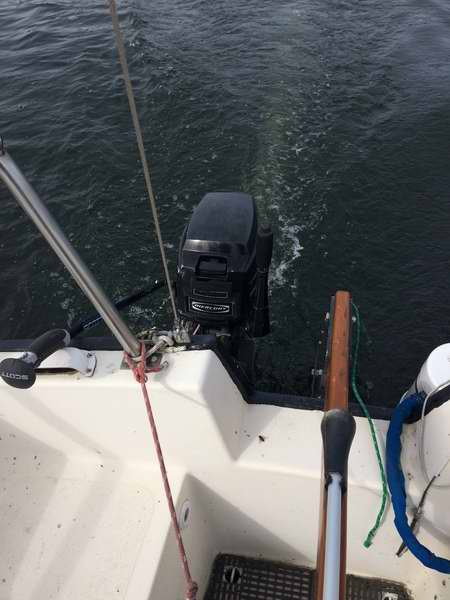

 Fig 5 - Overall view before pole was shortened.

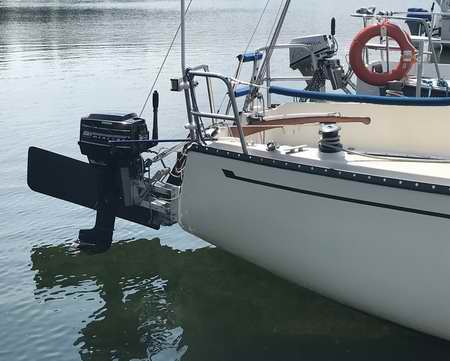

Fig 6 - Outboard shallow water drive position.


 		 Fig 7 - Outboard deep water drive position.

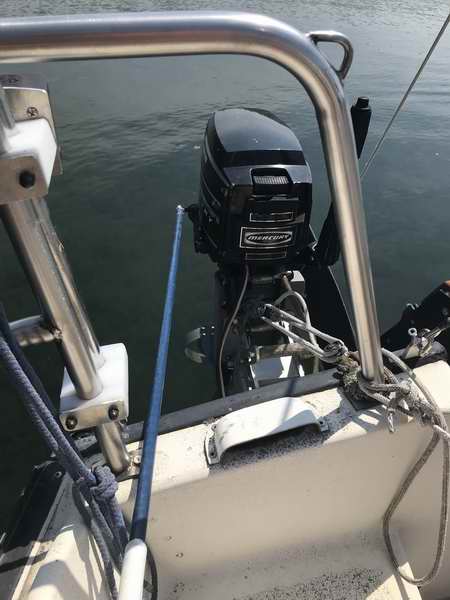

Rod End Fitting (2023) - As good as the gear a shift extender is, the outboard could rotate only +100 with the slight play in the joint.  If I rotated the outboard beyond 50 it broke the Merc shift lever, which isn't sold anymore.  Grrr.  I could have increased the play in the joint but then the action wouldn't be as sensitive.  For this reason the end of the blue fibreglass ski pole received a rod end fitting that increases the rotation of the outboard to +300.  This minimized the risk of breaking the Merc shift lever.  It is now possible to rotate the outboard to push the stern sideways to the finger as the last action when docking.  Read docking description above.  In addition, the pole can lay over the toe rail with the outboard tilted up, thereby keeping the cockpit seating clear.  That being the case, I may leave it there permanently.

With the handle on the previous aluminum ski pole, lowering the outboard sometimes pulled the shift lever to forward when the handle snagged on the transom.  The new fibreglass does not have a handle that can snag on the transom so problem solved.  I finally installed a 900 bronze fitting on the fuel line adapter so it can't snag on the outboard bracket when rotating the engine to push the stern to the finger.  Ah the "hassles" of berthing in a slip compared to the freedom of hanging from a mooring.  But then its a tad difficult to walk to shore from a mooring!  Its also a lot easier to do repairs at a dock.

CONSTRUCTION - The rod end fitting is screwed into the end of the fibreglass pole that was previously filled with G-Flex epoxy.  Cap the pole end to seal it tight, drill a couple of 1/8" holes across the pole ~3" up from the end, inject epoxy with a syringe, tape the holes shut, leave it standing in a warm corner while you sip a rum as it cures.
Once cured (>24hrs), drill a slightly under size hole into the end and screw the stud of the rod end fitting in the hole.  You got it, have another rum.  The thread fits really snug and is ready to connect to the outboard.  If you messed up on this last step, smear epoxy on the thread and insert it in the hole.  Wait at least 24 hours to install it on the outboard.

CONCLUSION - This new outboard gear shift extender is definitely an improvement, especially in the tight confines of motoring in a narrow slip.  The aluminum ski pole has been repurposed to support the furler when the mast is down.  It saves a lot of time at the ramp.


FOOTNOTE - I realize you can buy a factory remote control for an outboard that can be bolted to the side of the cockpit.  They are convenient to use but I wish it was available for my 1976 Merc 75.  Problem is, the power boat type control lever is intrusive to sail handling since the sheets will tangle on the lever.  If the lever could be removed, like for an inboard diesel engine, I would be tempted to install a system.  Oh the blessing of looking forward while controlling the outboard.  See Tech Tip D11.
